TrueAm UTV Dual Battery Kit W/Monitoring UTV-SBI-CM
Featuring the latest generation UTV Battery Isolator (UTV-SBI-18). A fully automatic Smart Battery Isolator product featuring PEP®. This kit was designed for the unique features of the stator charging systems for most all of the UTV's on the market today.
The isolator kit design insures that the available amps from your vehicles stator are used first to maintain the primary battery and the second battery is connected only after reaching the acceptable voltage threshold. If the combined system does drop below the disconnect threshold, then isolator disconnects making sure your primary battery is always fully charged.

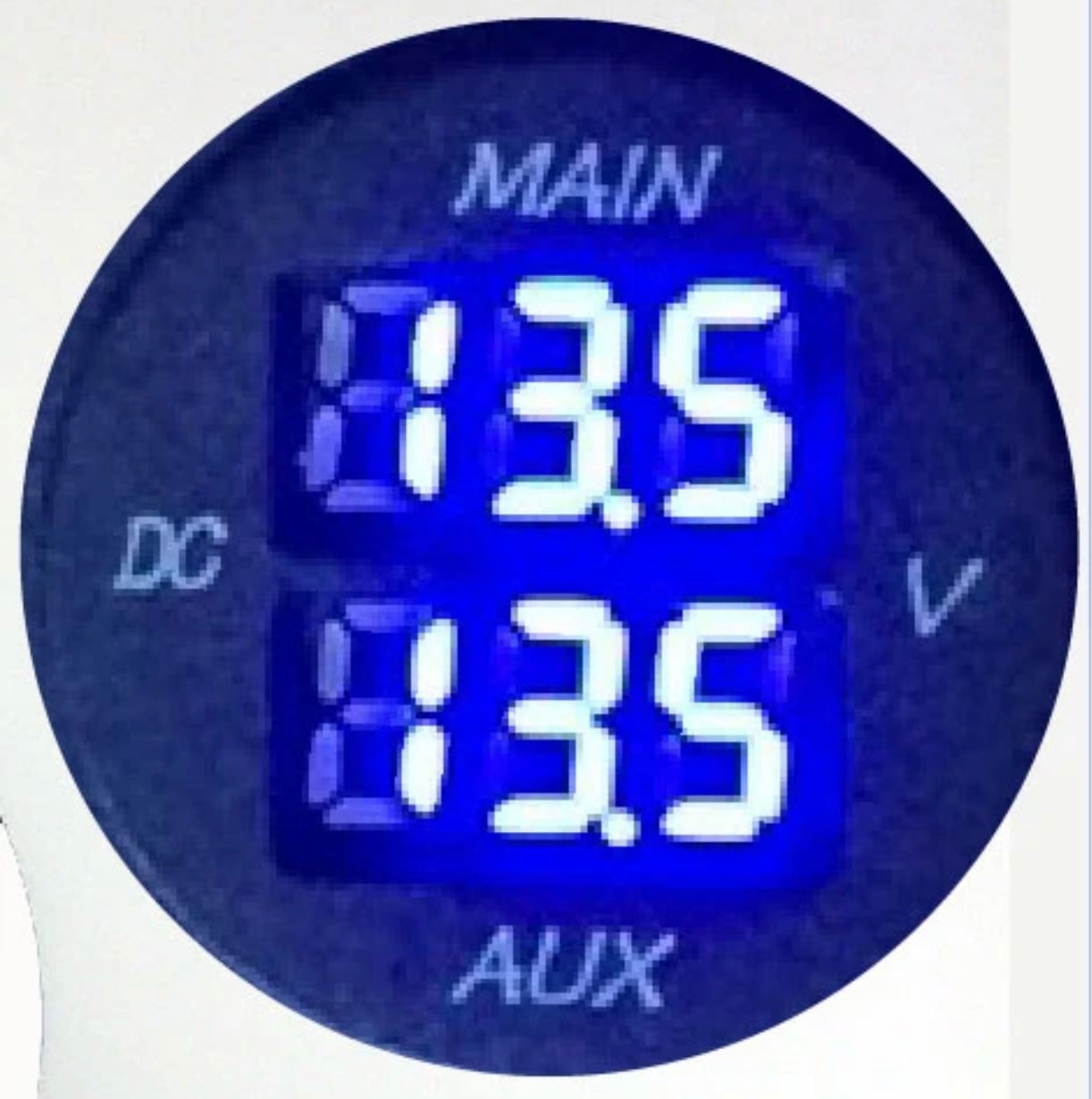

Single Meter - Dual Display, LED volt meter that combines the previous 15CM’s two meters into a single unit that displays both battery’s voltage levels simultaneously, for accurate real time monitoring. One meter means it save installation time and valuable space.

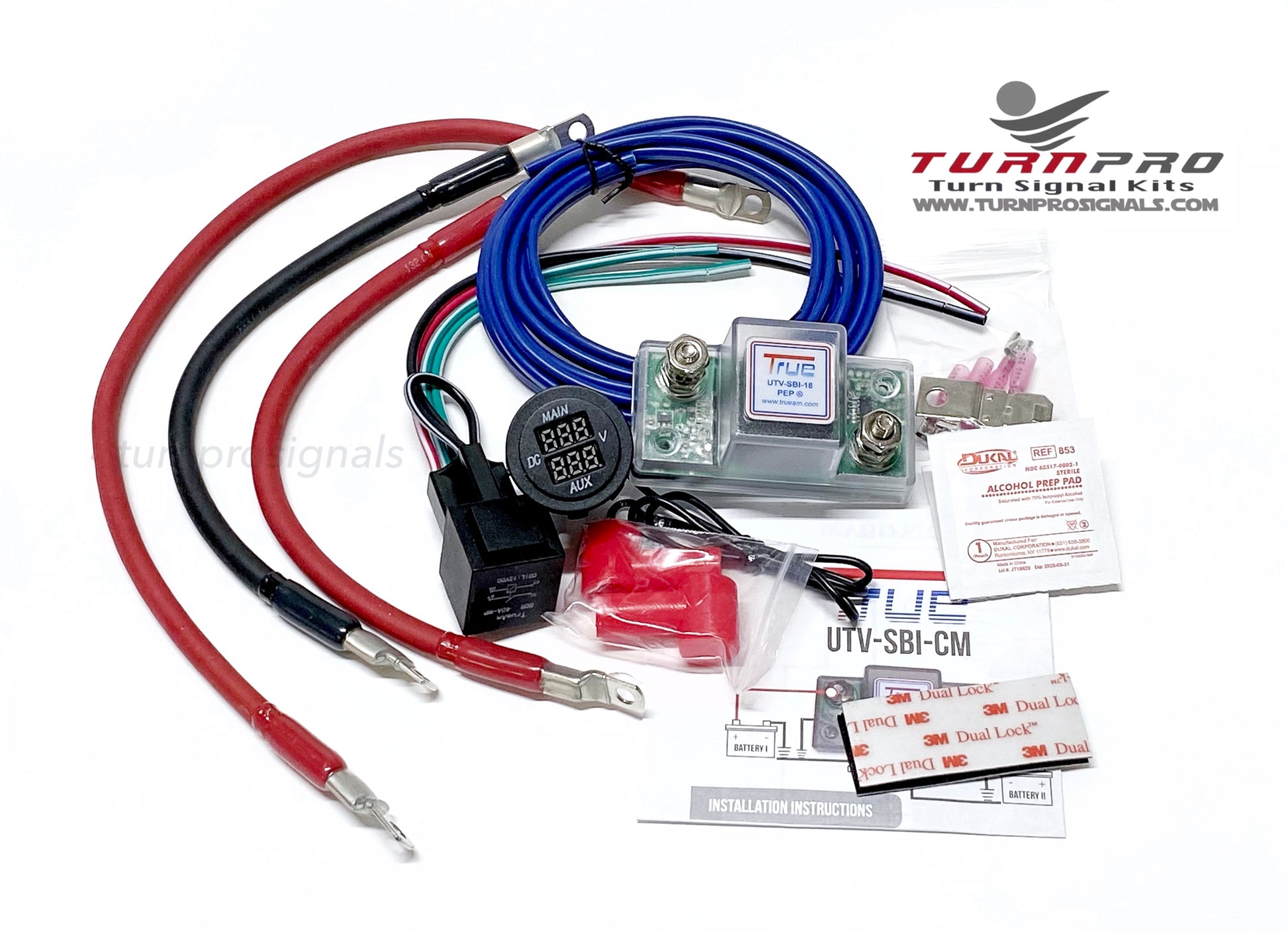

The NEW UTV-SBI-CM kit includes:
- 1-UTV-SBI-18 with insulators and 3M Dual Lock™
- 1-12 inch #6 black cable with 6mm (1/4″) lugs
- 1-12 inch #6 red (primary) cable with 6mm (1/4″) lugs
- 1-18 inch #6 red (secondary) cable with 6mm (1/4″) lugs
- NOW featuring a NEW 36mm Single Meter Dual Display blue LED volt meter

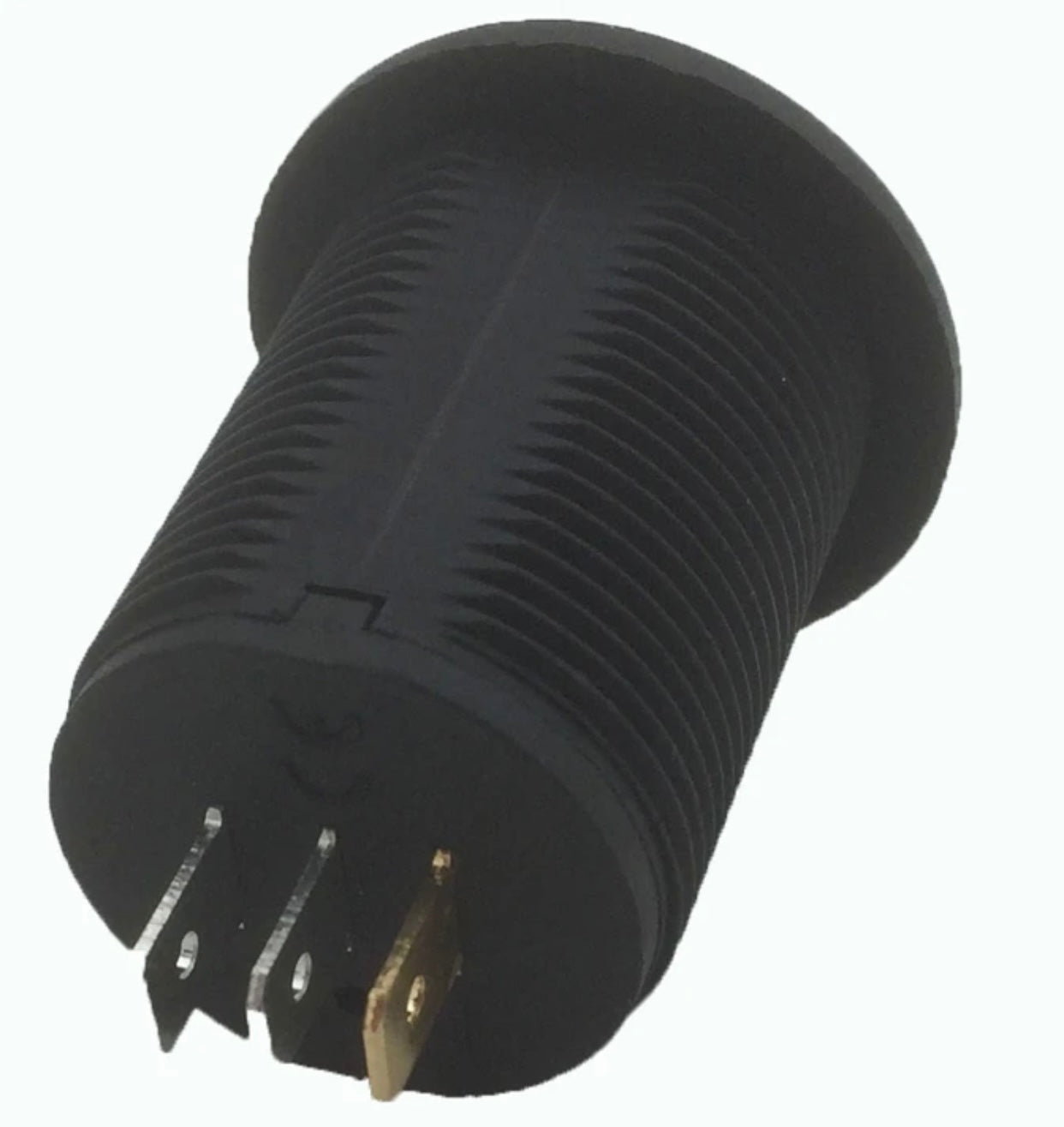

- on/off relay and socket

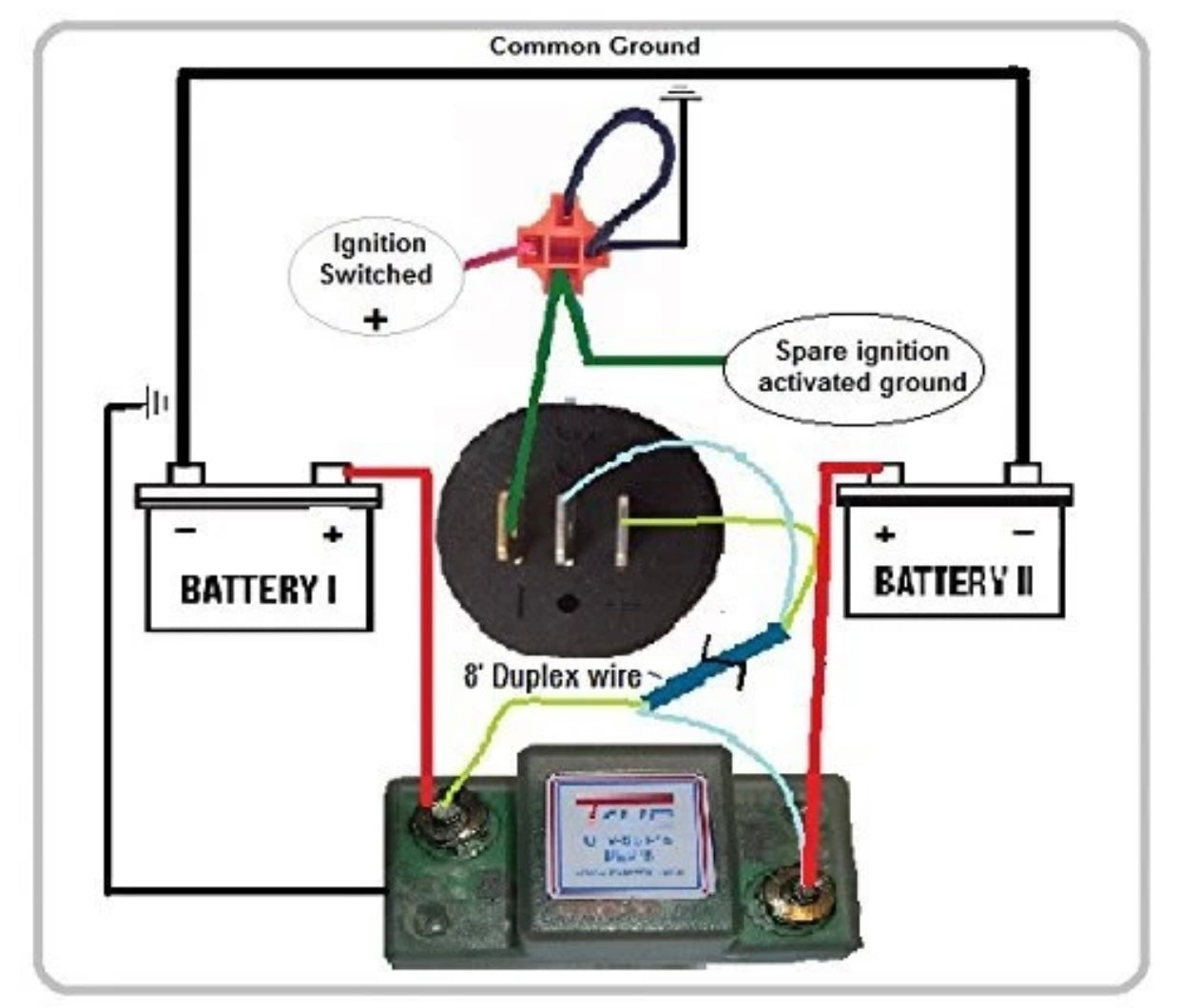

- 8ft duplex wire with connectors for meters
- Includes Instructions for easy installation
