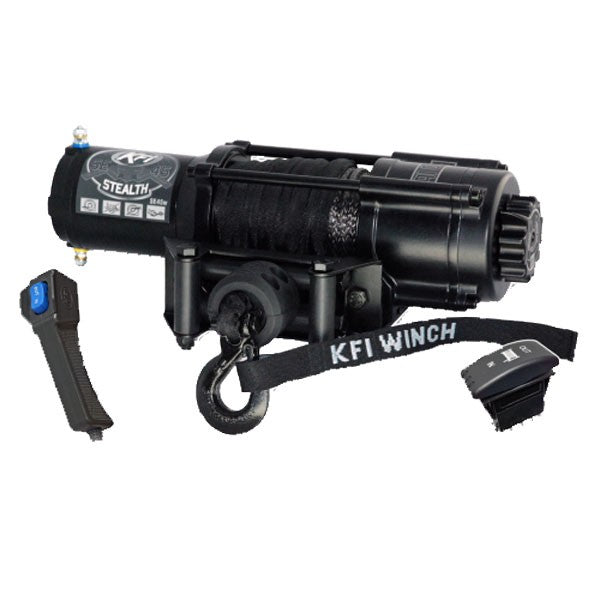

Whether it's on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 4500lb UTV Stealth Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI 1-Year Limited Warranty. The KFI SE35 Stealth Winch comes with everything you need other than an UTV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.
OPTIONAL ADD-ON!!
- The KFI Winch Wireless Remote Control Kit integrates into existing winch wiring configurations that utilize a contractor block to replace the existing wired remote. Optional kit includes wireless remote, reciever with wiring harness, holster, mounting hardware, wire tap and other accessories
| SE45-R2 Specifications | |
| Model | SE45-R2 UTV Series |
| Rated Line Pull | 4500 lbs. |
| Motor | 12V DC, 1.7 hp Permanent Magnet |
| Gear Ratio | 166:1 |
| Gear/Transmission | All-metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Clutch (free spooling) | All Metal Cam Activated Freespool |
| Drum Size | 2.0" (D) x 3.19" (L) |
| Synthetic Cable | 15/64" (D) x 38' (L) Smoke color |
| Fairlead | Multi-directional POM Roller |
| Control | Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch |
| Winch Dimensions | 14.6" L x 4.55" D x 4.82" H |
| Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV) |
| Mounting Bolt Pattern | 3.00" x 4.875" (4-Hole) |
| Recommended Battery | 12 Amp/hour minimum |
| Warranty | Limited 1 Year |
| Winch Weight | 33.65 lbs. (complete kit) |
