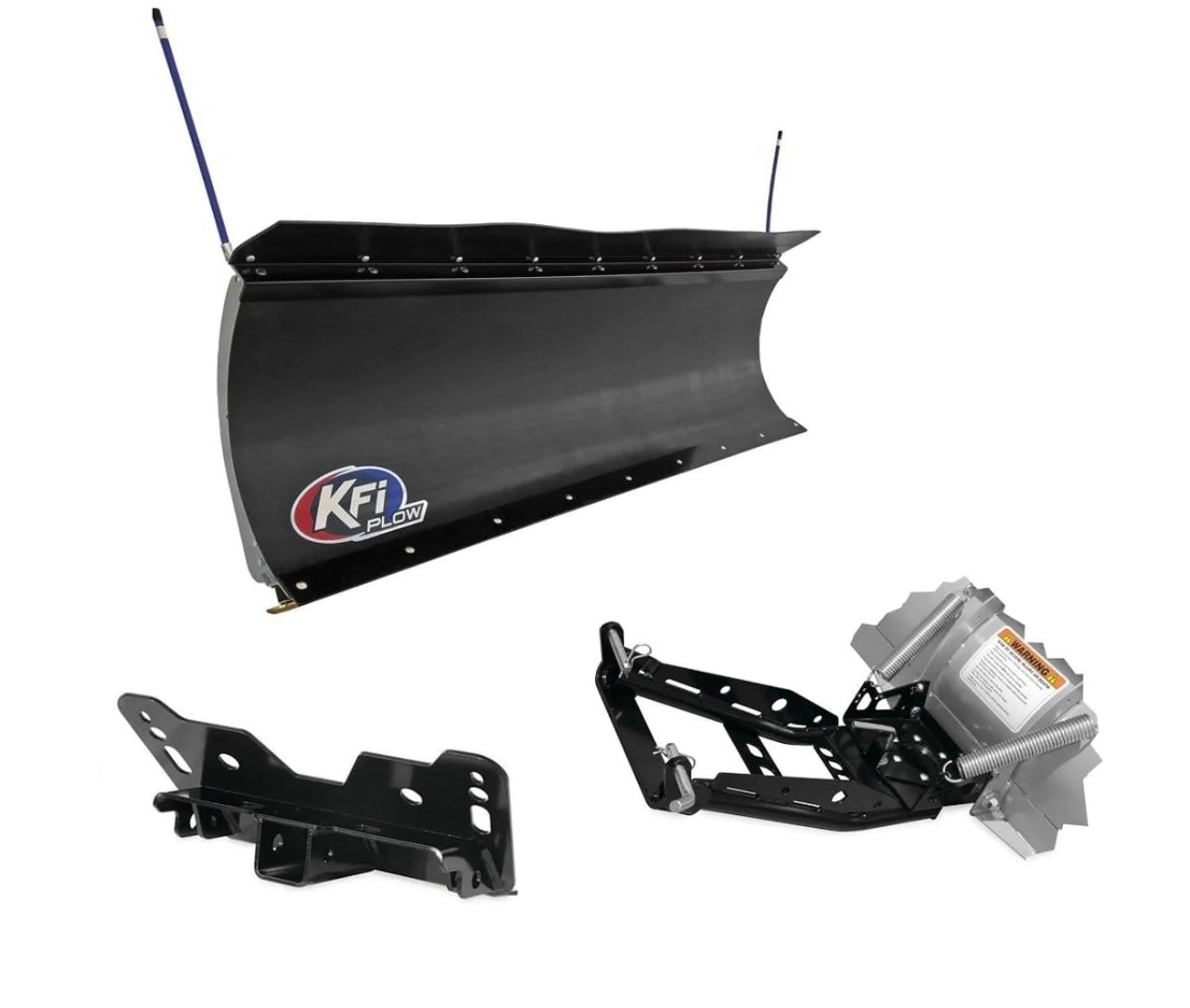

HONDA TALON KFI POLY PRO SERIES PLOW
Put your machine to work in the winter with the KFI Snow Plow Kit. KFI Snow Plow Kits are made in the USA engineered to withstand the varying harsh conditions of winter. Mounting options are available for Honda Pioneer 500 / Pioneer 520 / Pioneer 700 & Pioneer 1000 Models.
Specifications

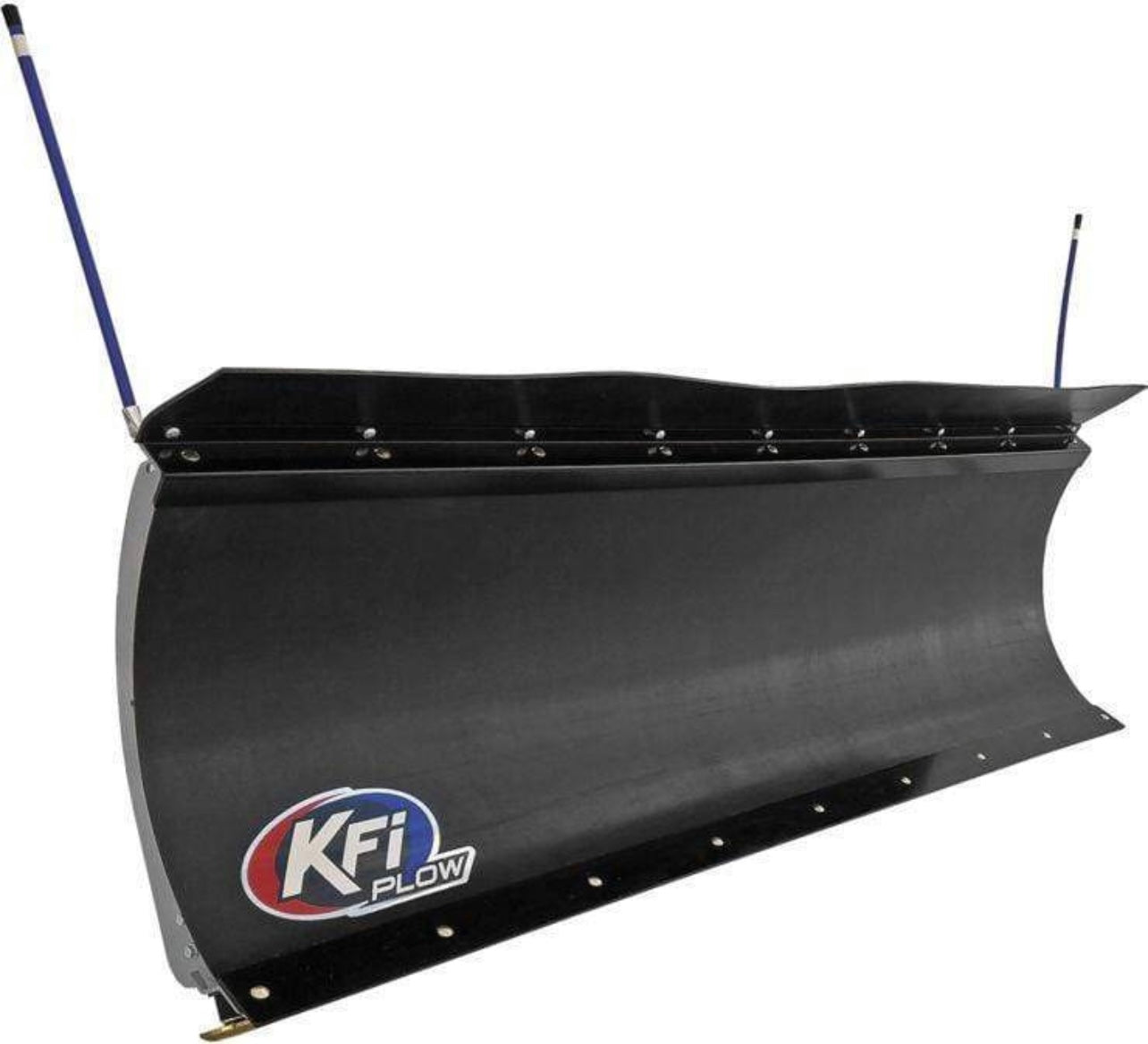

UTV Pro Poly Plow Blade
- 21" Vertical blade face height with an approximate 27" height with snow flap
- 3/16" Grade 50 Steel Rib and Frame construction
- Shot Blasted and Powder Coated Black Steel Frame
- Flexible Heavy Duty Black Poly face
- Same weight as steel blades
- 2-Sided 3/16" Grade 50 Steel attached with Grade 8 bolts
- Includes plow markers and snow flap
- Replaceable Blade Face
- Dual Curvature face for supreme snow moving
- Heavy Duty 1/2” thick Adjustable Skids
- Made in USA
- Complete installation instructions included
- 2-Year KFI Warranty

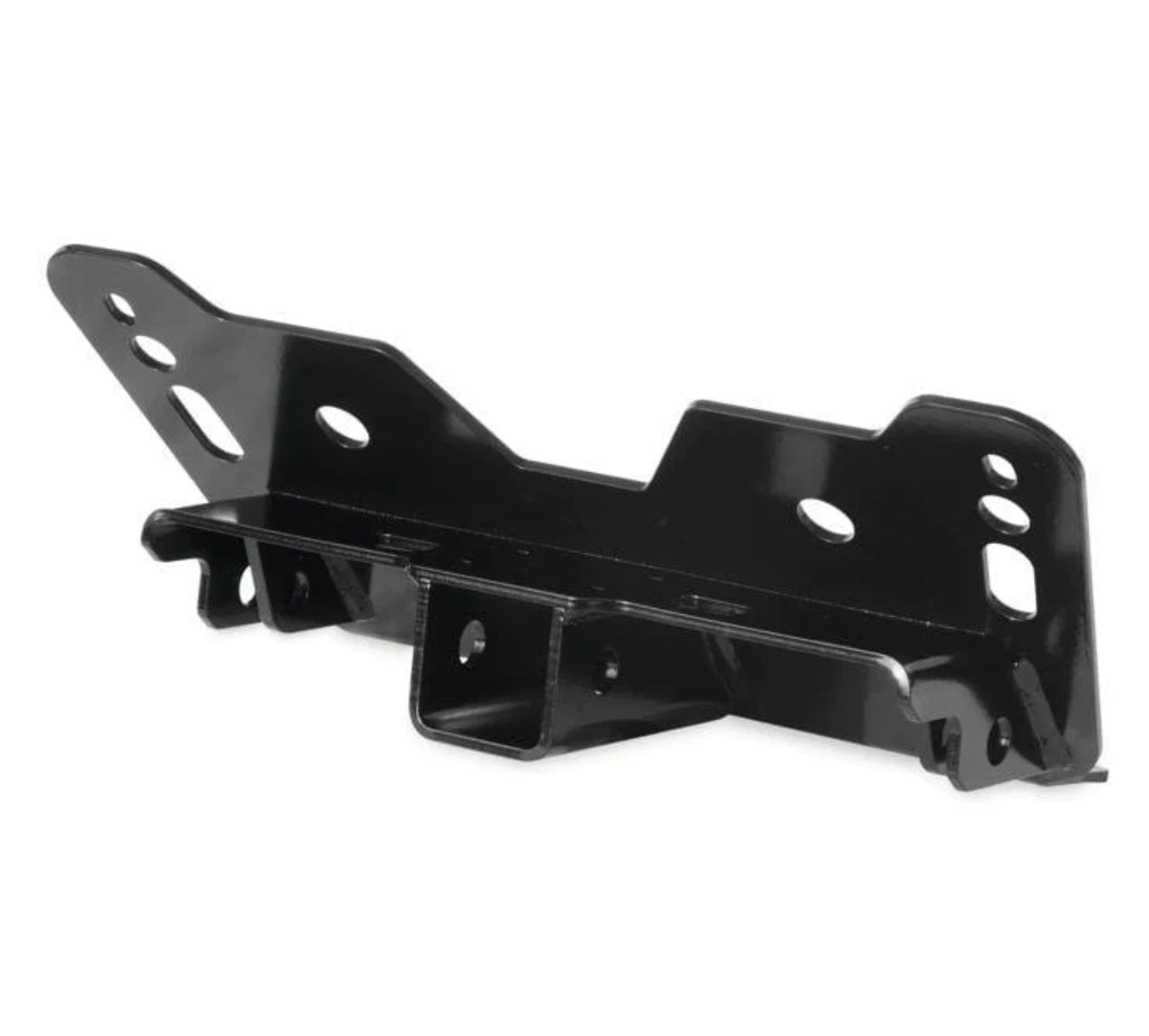

UTV Plow Mount
- Front-Mount System
- 100% MADE IN USA
- Plate constructed from 3/16" Grade 50 Steel
- All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
UTV Push Tubes
- Front Mount Design with 30" of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2" 11 Gage Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter Zinc Plated Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Fully-adjustable blade skids with bolt-on brackets
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- 2-Year KFI Warranty
ADDITIONAL OPTIONS:
PLOW ACTUATOR
- Complete wiring kit with Carling Technologies Two-Way Dash Rocker Switch
- 18 Month Warranty on Parker Hydraulic Actuator based on its manufactured date
- Rotates up to full 25 degrees in both directions

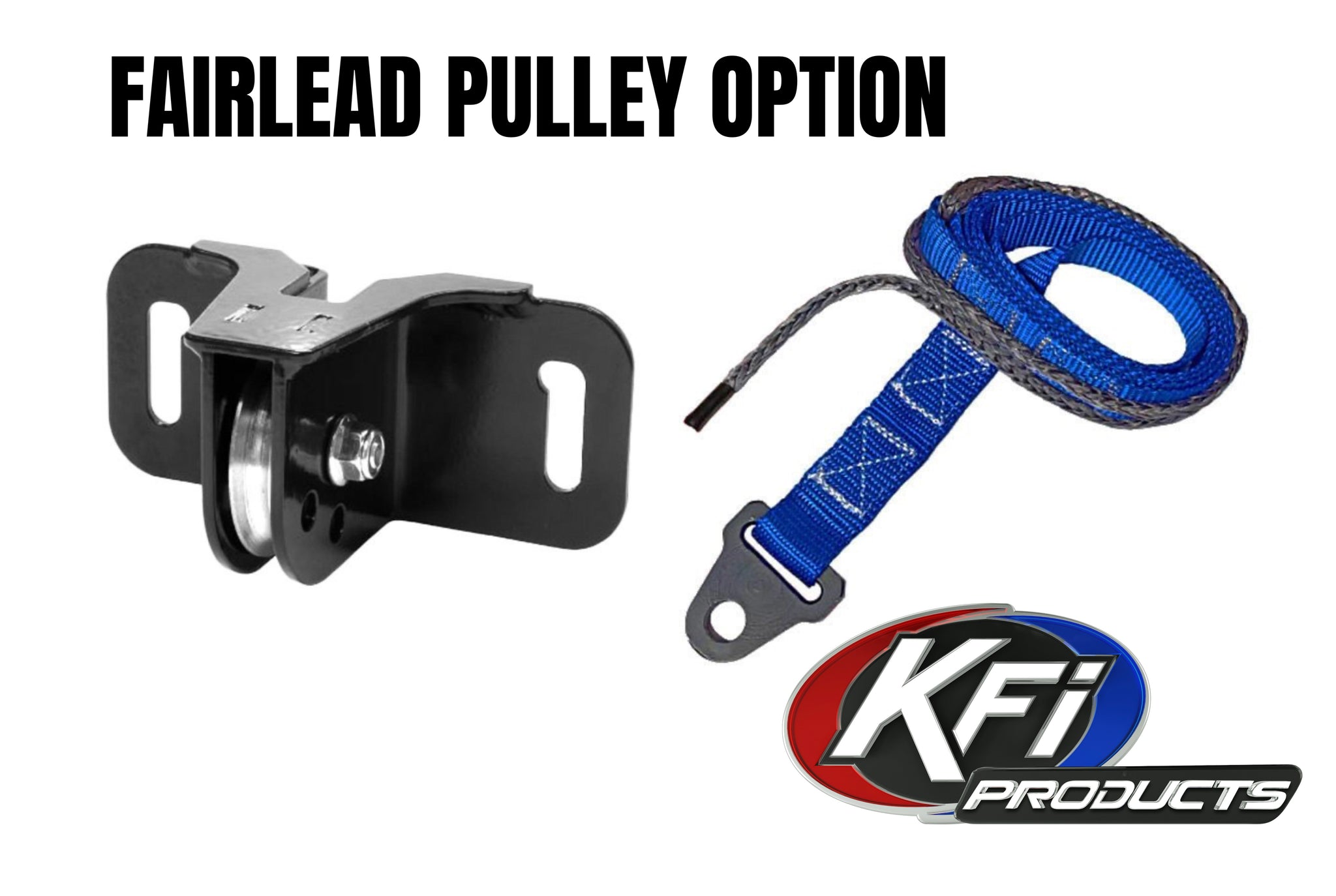

PLOW FAIRLEAD PULLEY
- Replaces standard winch fairlead during plow season.
- Provides larger 2-1/8” diameter roller for smoother cable movement when plowing compared to standard 7/8” rollers.
- Roller has a curved cable groove to help eliminate cable flattening, which leads to snapped cables during the plowing season.
- Eliminates potential cable kink due to small roller contact and abrupt angle rolls.
- Multiple roller positions for different applications and cable angles.

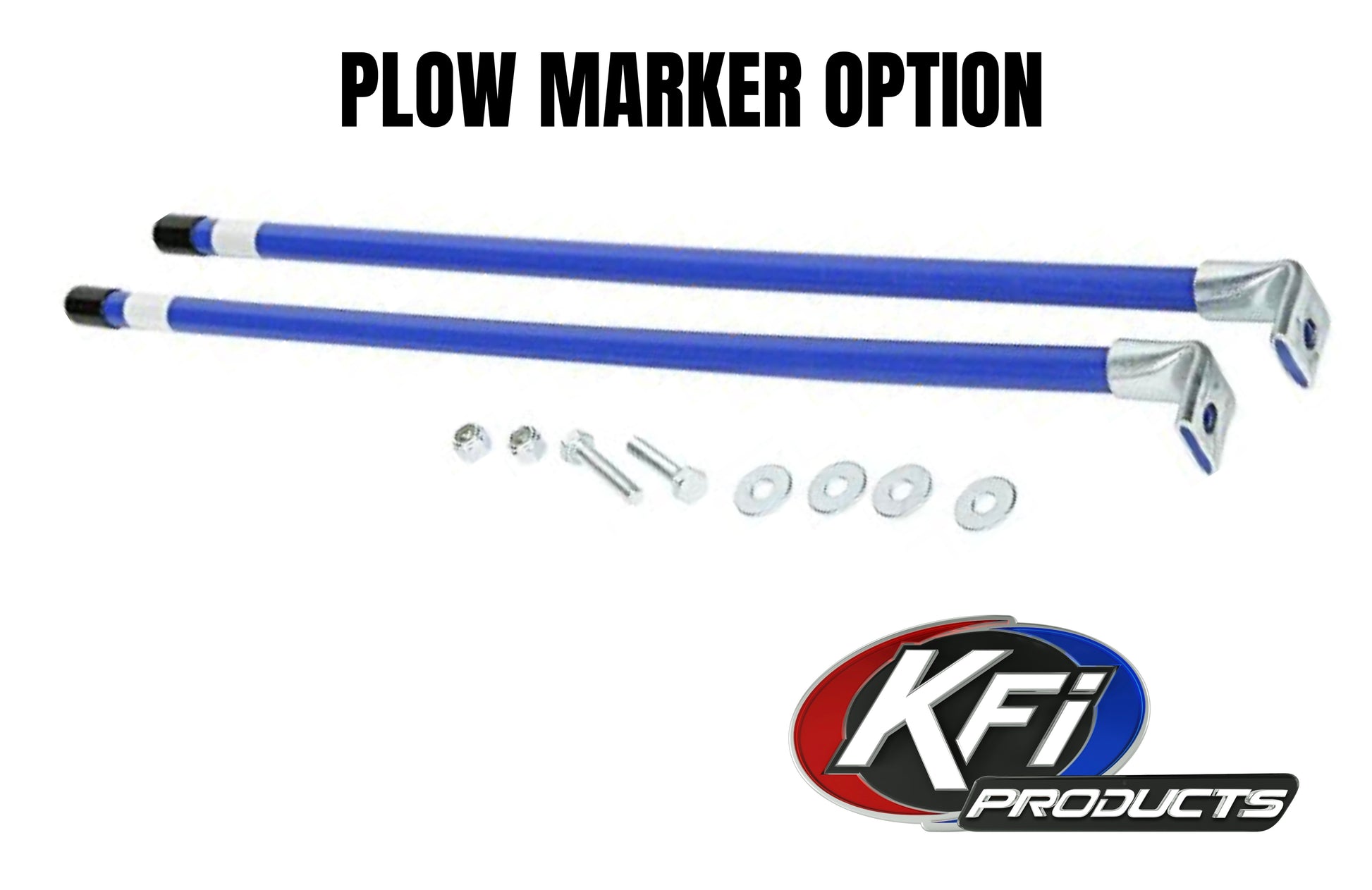

KFI PLOW MARKERS
- Increase your blade end visibility for added safety
- Bolts to the side/end of your blade
- Poly markers with a steel 89 degree angled base
- Includes two markers
- 15.5 " long

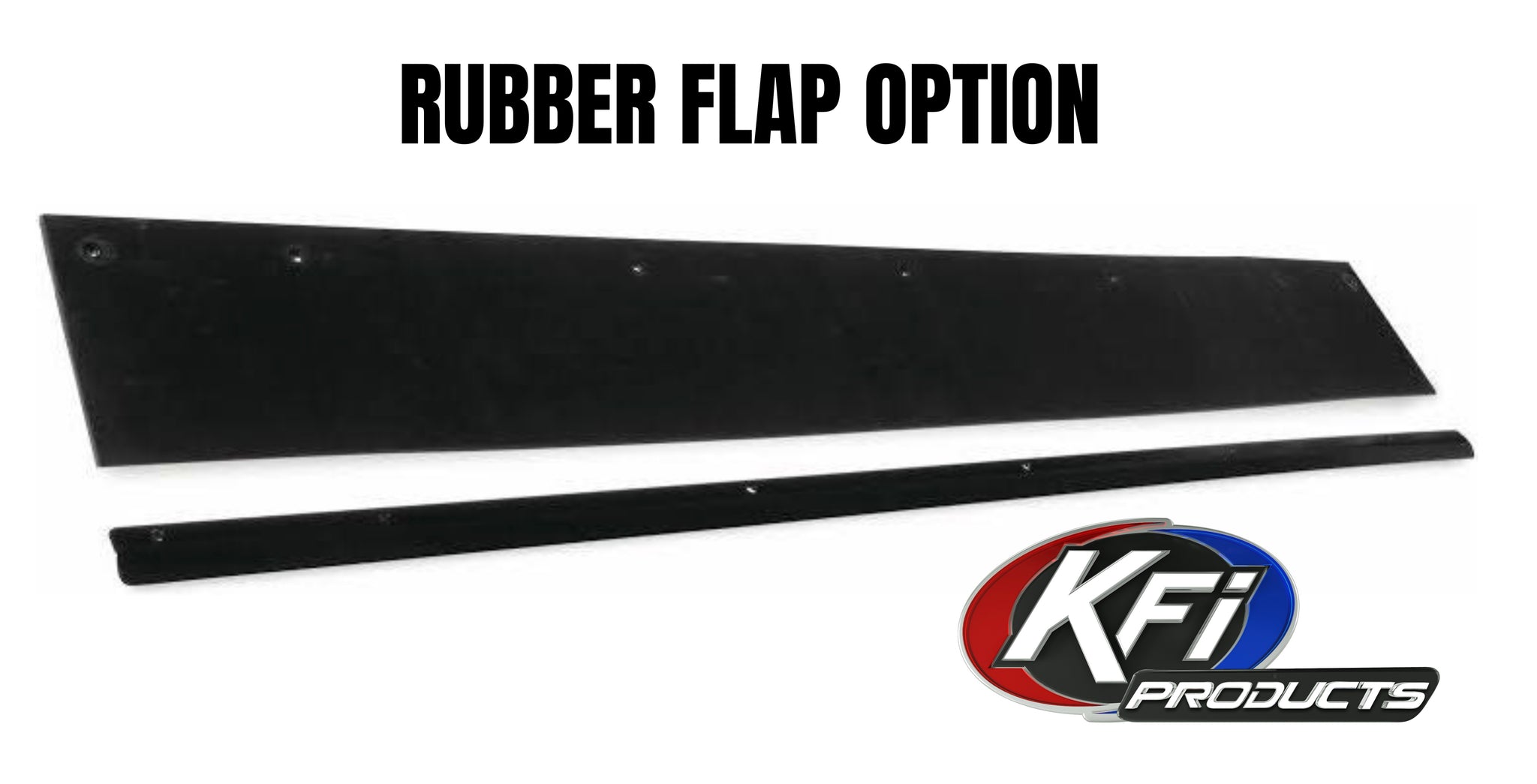

KFI SNOW FLAP KIT
- 11 gauge steel adjustable snow flap edge strip
- 7 inch 2 ply rubber flap add 6 inches to blade height
-
Can be adjusted downward for snow cupping effect
