Honda Pioneer Denali UTV Plow System

Regular price
$729.99
Sale price
$729.99
Regular price
Sold out
Unit price
per

PLEASE NOTE: Extended Pushtubes is not compatible with the Hydraulic Lift System

NOTES: Will NOT work with a WARN winch mount
NOTES: A small amount of trimming to the side tabs is required when using a KFI Winch mount

Snow doesn't stand a chance against DENALI Pro UTV Snow Plows. Designed in the USA, these heavy duty, County-style 12-gauge steel UTV plow blades make quick work of powder and wet snow. The center mounted design disperses the force of impact to the sturdiest part of the UTV / SxS, preventing damage to the front end or other vehicle parts from sudden impact. The plow kit includes a reversible wear bar, rubber flap, and skid feet to protect the blade from wear and tear. Dual-layer powder & Polyester paint coat boosts corrosion protection and UV resistance, keeping you plowing for seasons to come.

Please Note:All DENALI Snow Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, VIPER Max, or VIPER Midnight winch with an automatic brake.


Kit Contents:

  • UTV Snow Plow Blade - Straight
  • Pushtubes
  • Wearbar
  • Skid Feet
  • Installation Hardware and Instructions

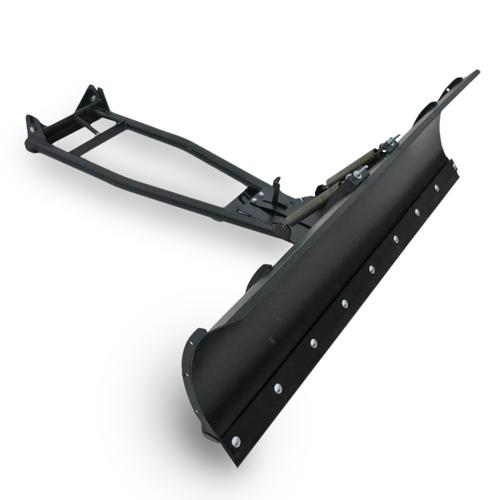

Blade Features:

  • Snow Plow Blade (19 inches scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
  • Four 7 gauge ribs run the full height of the blade
  • Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
  • 65° attack angle and over center design ensures snow rolls up and is thrown forward
  • Replaceable 7gauge steel wear bar included with every kit
  • Height and angle adjustable skid feet included
  • 3 Year Warranty

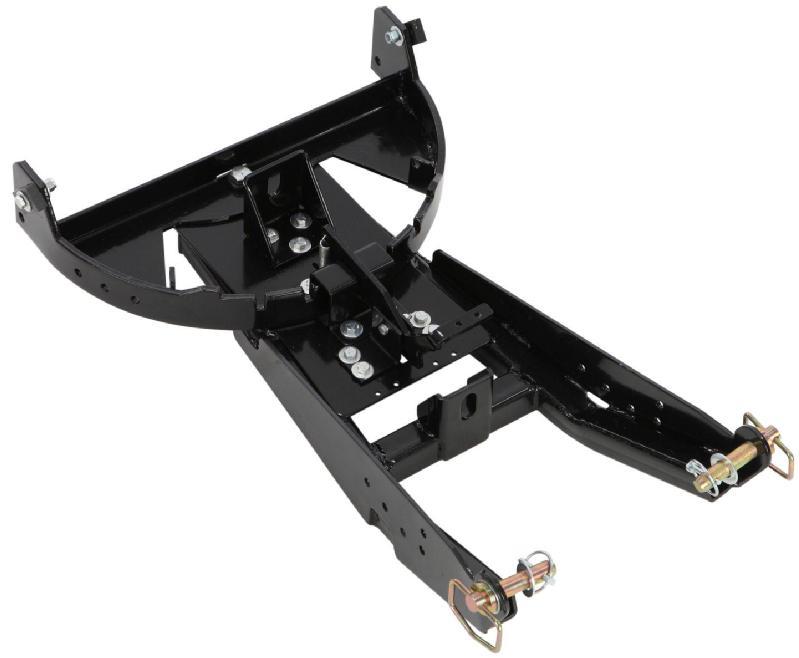

Pushtube Features:

  • Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength
  • Turn system allows for easy positioning of the blade in 5 different angles - 0, 12.5°, 25°
  • Simple detachment system with the pull of a pin
  • Structural tube steel cross bar for added lateral rigidity
  • Quick release pins included
  • 13.5 inches center to center for plow mount tabs
  • Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
  • Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)
  • Extended Push Tubes are designed to be used with SxS/UTVs that have tracks

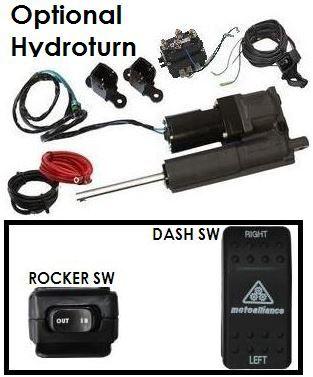

Optional Hydroturn Features:

  • PLEASE NOTE: Extended Pushtubes is not compatible with the Hydraulic Lift System
  • Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
  • Change the blade angle while driving; full radius turn in just 10 seconds
  • Heavy duty chrome plated ¾″ cylinder shaft
  • No modifications necessary - bolts directly to the Denali UTV Plow Push Tubes
  • Wire harness utilizes weatherproof connectors

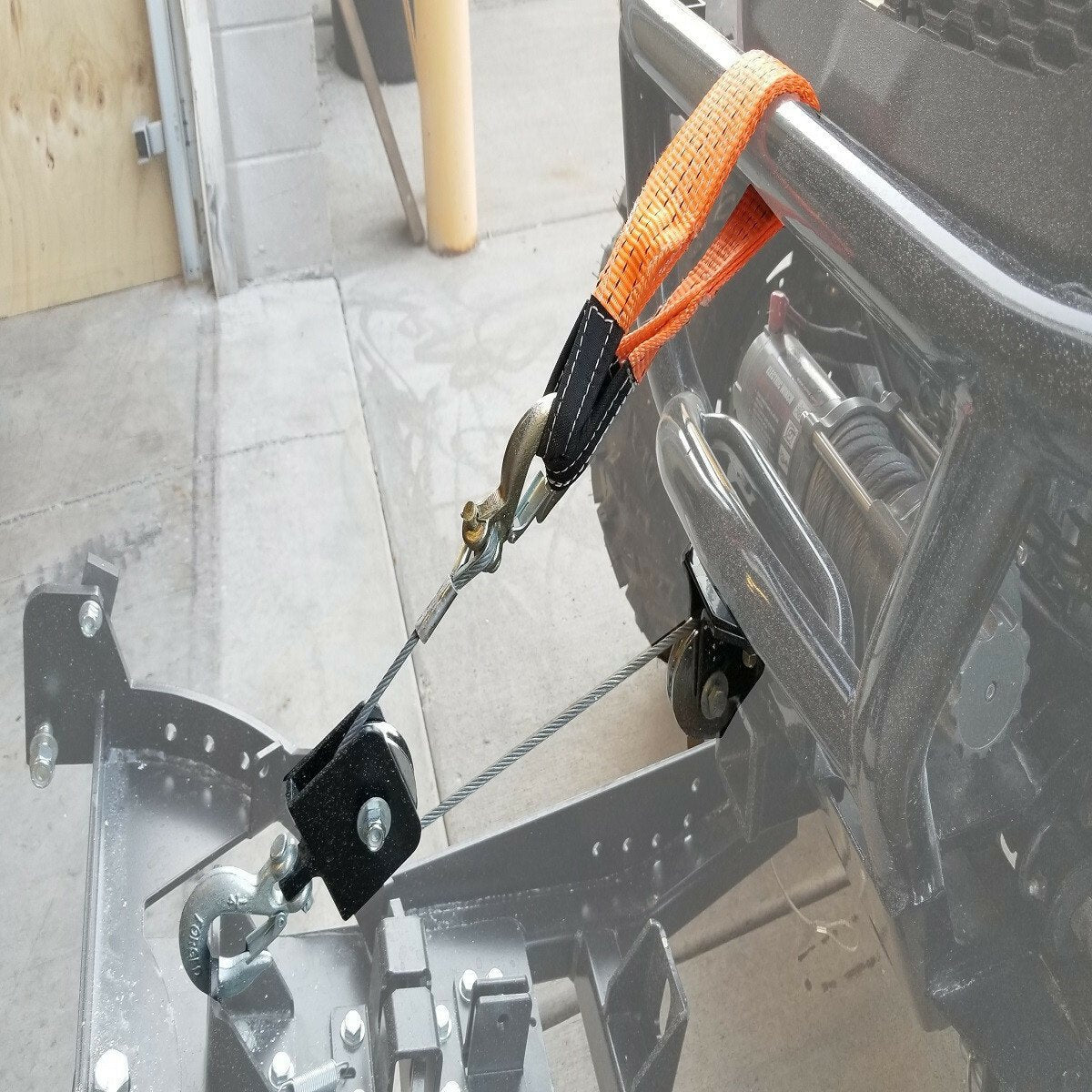

Optional Plow Pulley Fairlead Features:

    • Roller
      •      Replaces the winch fairlead during the plow season
      •      For use with Steel AND Synthetic cables
      •      Curved cable groove helps eliminate flattening and breaking of cable
      •      Bolt Patterns:
      •         Standard Spool: 3″ x 4.875″
      •         Wide Spool: 3" x 6.67″

    • Sheave
      •      Includes pulley, 1/4″ clevis hook and nylon strap
      •      Allows greater precision when raising/lowering plow blade and increases the angle of pull

  • Cable
    •      12′ length, 1/4″ diameter
    •      Single braid, dyneema rope with galvanized steel thimble/eyelet
