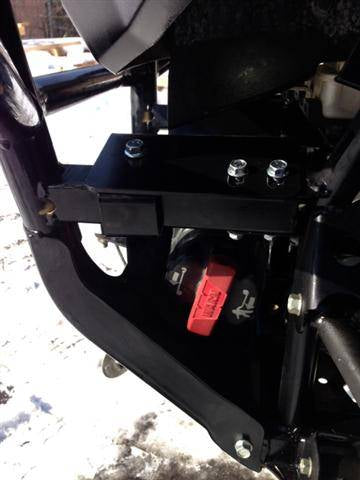

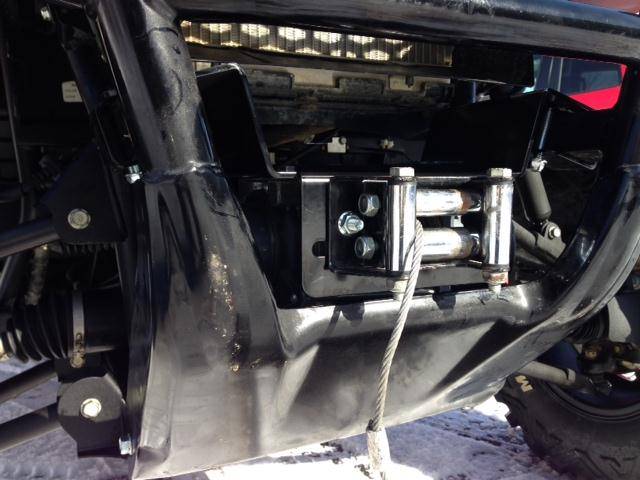

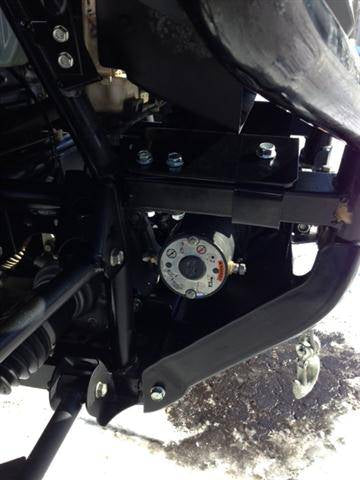

Honda Pioneer Winch Mount
Fits: 2014-22 Pioneer 700 and Pioneer 700-4 (if you have a Pioneer 1000, see P/N 13136)
If you are mounting your winch down below on our front bumper p/n 12493 then you will need this winch mount. If you are mounting it on top of our bumper you will not need this.
Accepts most winches up to 4000 lbs.
Viper Elite 3500
Viper Elite 4000
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40
WARN: Vantage 2000-4000lb
WARN: Vantage 2000-4000lb
WARN: ProVantage 2500-4500lbs
ATV2500 / ATV3000
Terra25 / Terra35 / Terra 45 / LT2000 / LT2500 / LT3000
MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND : 2000lb #68146 - Requires the correct Fairlead with a 4.875" Bolt Pattern (available if needed EMP P/N: 10906) - Listed Models come with incorrect ATV Roller Fairleads
BADLAND : 3000lb #68145 / 5000lb #68144
CHAMPION : C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 13501(reqires rollers) / 14061
CHAMPION : 14501 / 14551 / 14552 / 40252 (4500lbs)
CHAMPION : 10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145 - Requires the correct Fairlead with a 4.875" Bolt Pattern (available if needed EMP P/N: 10906) - Listed Models come with incorrect ATV Roller Fairleads
CHAMPION: 14001 and 14061
KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
KEEPER CORP. TRAKKER : KT2000 - Requires purchase of a roller Fairlead (EMP P/N: 10906)
SMITTYBILT : XRC 2.0 - Requires the correct Fairlead with a 4.875" Bolt Pattern (available if needed EMP P/N: 10906) - Listed Models come with incorrect ATV Roller Fairleads
SMITTYBILT : XRC 3.0
XGEAR: X3000 / X4000 - 4-Hole Standard (3.00" x 4.875" bolt pattern)
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series) - All with 3.00" x 4.875" Bolt Pattern mount-up - All with 3.00" x 6.600" Bolt Pattern mount-up
Possibly Many others with the below standard Mounting patterns - 4-Hole (3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern) - 4-Hole WIDE (3.00" x 6.60" bolt pattern with Rollers that are 6.600" or 6.000" bolt pattern) - 2-Hole (3.10" with Rollers that are 4.875" bolt pattern)
P/N: EMP12437-N
