Please Note:All DENALI Snow Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, VIPER Max, or VIPER Midnight winch with an automatic brake.
Kit Contents:
-
UTV Snow Plow Blade - County / DOT Style
-
UTV Pushtubes
- One (1) Reversible Wearbar
- Rubber Flap
- Rubber Flap Stabilizer Bar
- Skid Feet
- Plow Markers
- Plow Mount (when added to order)
- Installation Hardware and Instructions
Blade Features:
- County-style blade (curved design) cuts wet snow & throws powder; made of 12-gauge steel
- Impact Resistant Reinforcement System, includes leading edge stiffener and vertical stabilizer bar
- Sand-blasted powder coat with epoxy primer & TGIC Polyester top coat for corrosion protection, UV resistance and durability
- High strength, high yield 3/16 thick Grade 50 steel wear bar
- Angled Blade : 16 on the low side; 23 on the high side
- Rubber flap & stabilizer bar with rubber flap

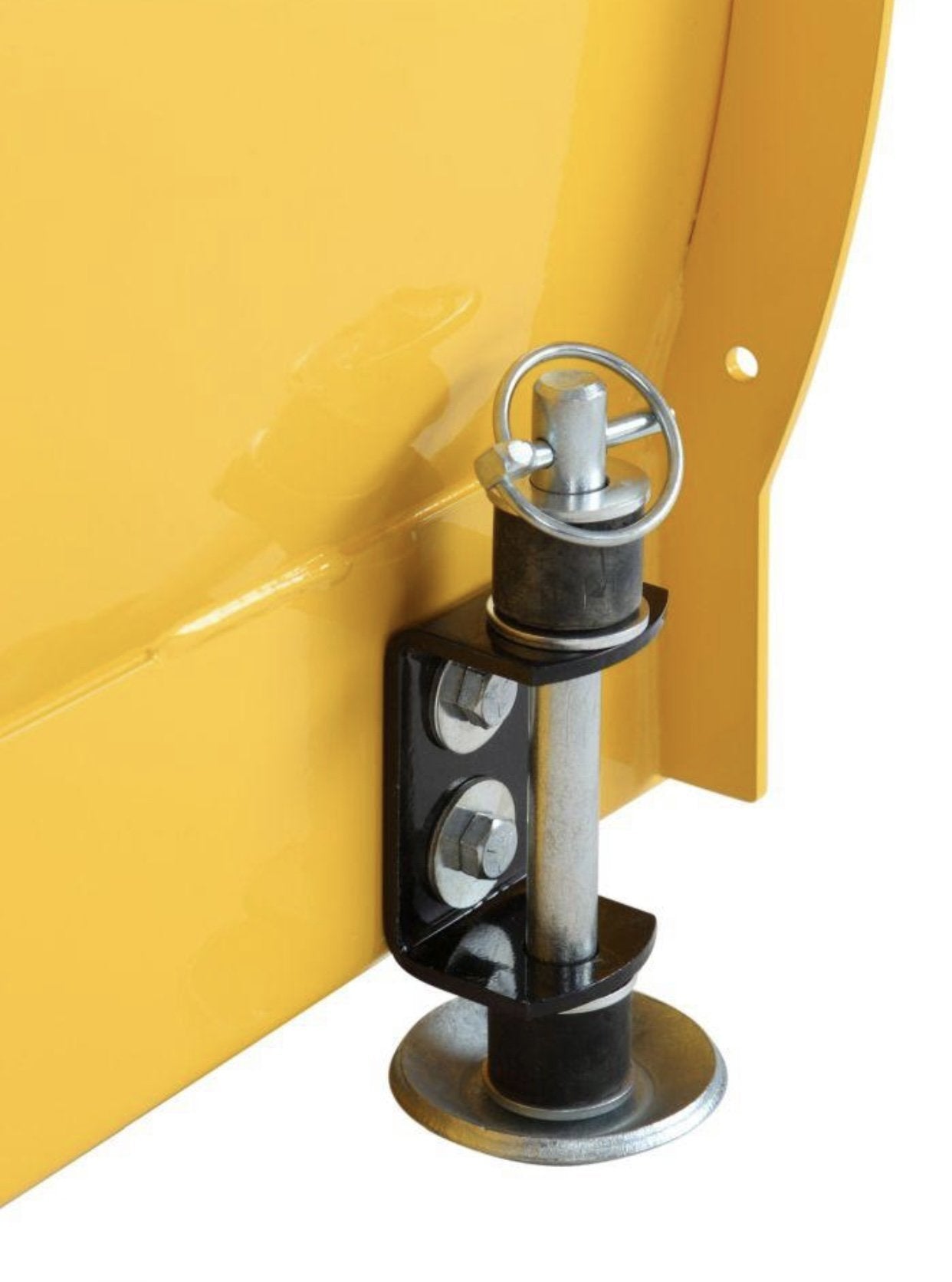

- Height AND angle adjustable steel skid feet
- 3 Year Warranty
- Made in the USA
Pushtube Features:
- Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength
- Turn system allows for easy positioning of the blade in 5 different angles - 0, 12.5°, 25°
- Simple detachment system with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity
- Quick release pins included
- 13.5 inches center to center for plow mount tabs
- Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
- Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)
- Extended Push Tubes are designed to be used with SxS/UTVs that have tracks
Optional Hydroturn Features:
- PLEASE NOTE: Extended Pushtubes is not compatible with the Hydraulic Lift System
- Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
- Change the blade angle while driving; full radius turn in just 10 seconds
- Heavy duty chrome plated ¾″ cylinder shaft
- No modifications necessary - bolts directly to the Denali UTV Plow Push Tubes
- Wire harness utilizes weatherproof connectors

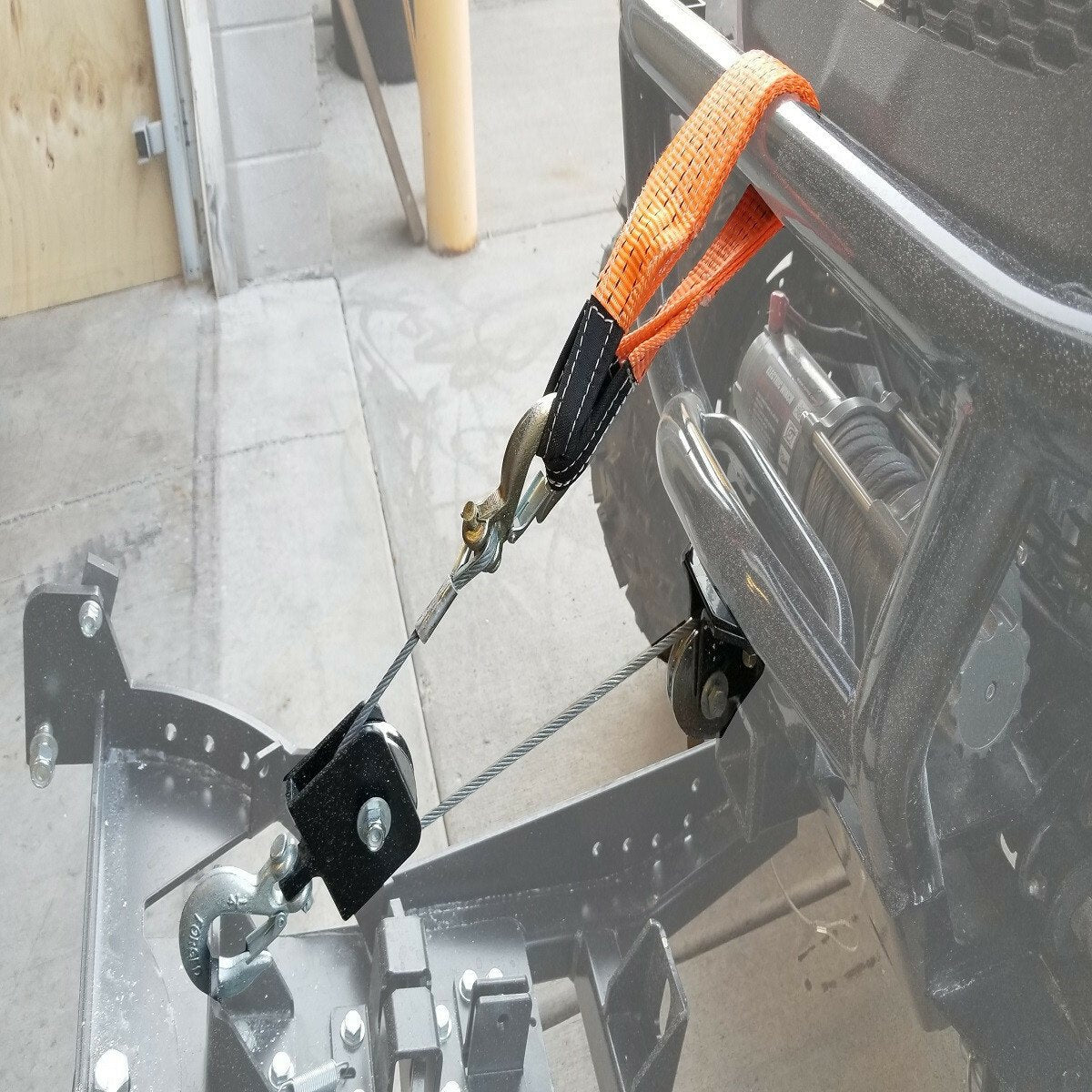

Optional Plow Pulley Fairlead Features:
- Roller
- Replaces the winch fairlead during the plow season
- For use with Steel AND Synthetic cables
- Curved cable groove helps eliminate flattening and breaking of cable
- Bolt Patterns:
- Standard Spool: 3″ x 4.875″
- Wide Spool: 3" x 6.67″
- Sheave
- Includes pulley, 1/4″ clevis hook and nylon strap
- Allows greater precision when raising/lowering plow blade and increases the angle of pull
- Cable
- 12′ length, 1/4″ diameter
- Single braid, dyneema rope with galvanized steel thimble/eyelet
Please Note: does NOT fit 2013-2017 Ranger XP900 (or Crew)
MA11701
2010-2014 Polaris Ranger 400
2017-2020 Polaris Ranger 500 Mid Size
2014-2021 Polaris Ranger 570 Midsize
2014-2021 Polaris Ranger 570 Crew Mid Size
2013-2014 Polaris Ranger 800 Midsize
2015-2017 Polaris Ranger ETX
2016-2022 Polaris Ranger 570 Full Size (Round ROPS / Round Tube Roll Cage)
Note: will NOT fit 2022 Polaris Ranger SP 570
Please Note: Includes Mount Plate, Hardware List, Installation Instructions. Hardware may not be included.
2010-2014 Polaris Ranger 400
2017-2020 Polaris Ranger 500 Mid Size
2014-2021 Polaris Ranger 570 Midsize
2014-2021 Polaris Ranger 570 Crew Mid Size
2013-2014 Polaris Ranger 800 Midsize
2015-2017 Polaris Ranger ETX
2016-2022 Polaris Ranger 570 Full Size (Round ROPS / Round Tube Roll Cage)
2015-2017 Polaris Ranger 570 Full Size
2015-2017 Polaris Ranger 570 Crew Full Size
2016-2017 Polaris Ranger 570 XP 4x4 (Channel Tube Roll Cage)
2013-2021 Polaris Ranger XP900
2013-2021 Polaris Ranger XP900 Crew
2016-2021 Polaris Ranger XP900 High Lifter model
2017-2021 Polaris Ranger 1000 XP
2017-2021 Polaris Ranger 1000 XP Crew
2015-2018 Polaris Ranger 1000 Diesel
2016-2018 Polaris Ranger 1000 Diesel Crew
2019-2020 Polaris Ranger XP 1000 Northstar
2002-2008 Polaris Ranger
2008-2009 Polaris Ranger Crew
MA11752
2021-2022 Polaris Ranger 1000 EPS and XP (requires Polaris front brushguard)
2021-2023 Polaris Ranger 1000 Premium (requires Polaris front brushguard)
2022-2023 Polaris Ranger 570 SP Premium
2022-2023 Polaris Ranger 570 SP NorthStar
NOTE: does NOT work with base model
NOTE: does NOT work with extended pushtubes
NOTE: lift kits will NOT work with mount plate MA11752
NOTE: interference is possible when plow is turned at extreme angles when using tracks
MA11770
2 inch Receiver Plow Mount
All machines with front 2 inch receiver already installed
