CANAM DEFENDER DENALI PRO SERIES PLOW
PLEASE NOTE: Extended Push Tubes are not compatible with the Hydraulic Lift System
Snow doesn't stand a chance against DENALI Pro UTV Snow Plows. Designed in the USA, these heavy duty, County-style 12-gauge steel UTV plow blades make quick work of powder and wet snow. The center mounted design disperses the force of impact to the sturdiest part of the UTV / SxS, preventing damage to the front end or other vehicle parts from sudden impact. The plow kit includes a reversible wear bar, rubber flap, and skid feet to protect the blade from wear and tear. Dual-layer powder & Polyester paint coat boosts corrosion protection and UV resistance, keeping you plowing for seasons to come.
Please Note:All DENALI Snow Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, VIPER Max, or VIPER Midnight winch with an automatic brake.
Kit Contents:
- UTV Snow Plow Blade - County / DOT Style
- UTV Pushtubes
- One (1) Reversible Wearbar
- Rubber Flap
- Rubber Flap Stabilizer Bar
- Skid Feet
- Plow Markers
- Plow Mount (when added to order)
- Installation Hardware and Instructions

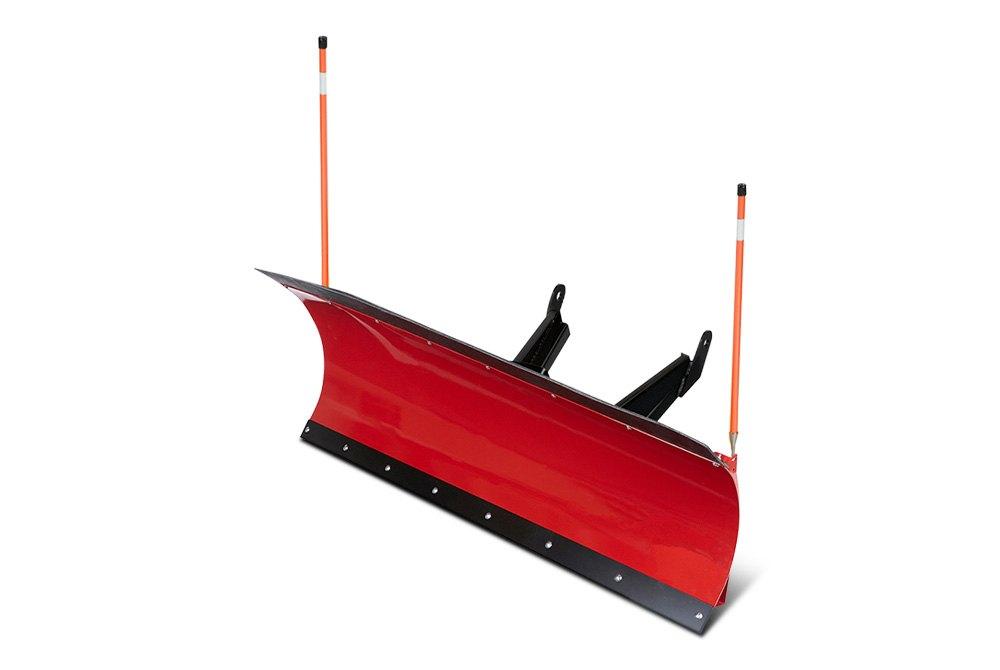

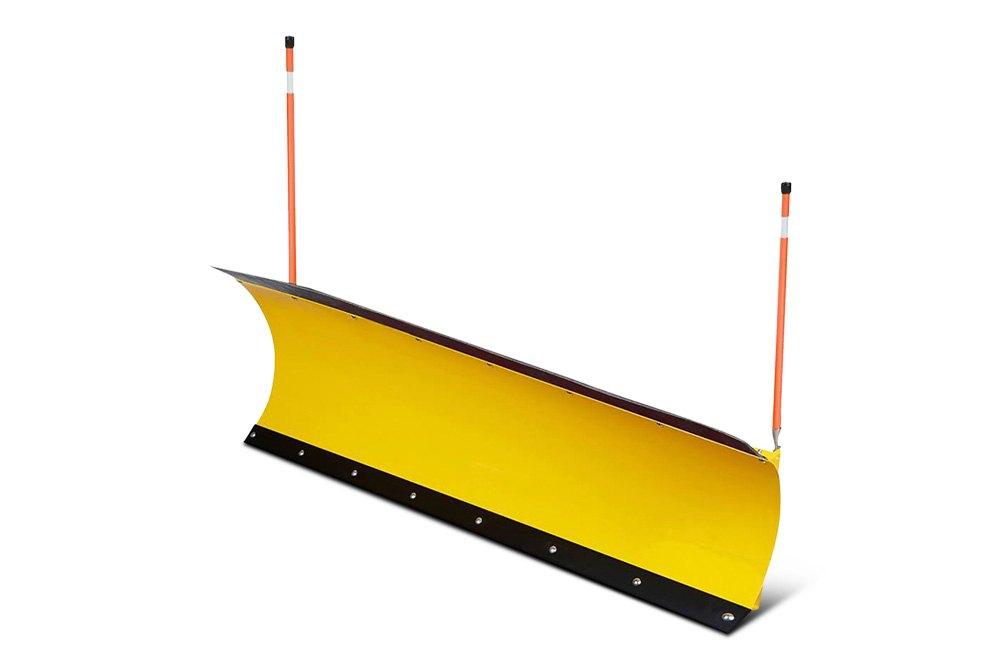

Blade Features:
- County-style blade (curved design) cuts wet snow & throws powder; made of 12-gauge steel
- Impact Resistant Reinforcement System, includes leading edge stiffener and vertical stabilizer bar
- Sand-blasted powder coat with epoxy primer & TGIC Polyester top coat for corrosion protection, UV resistance and durability
- High strength, high yield 3/16 thick Grade 50 steel wear bar
- Angled Blade : 16 on the low side; 23 on the high side
- Rubber flap & stabilizer bar with rubber flap

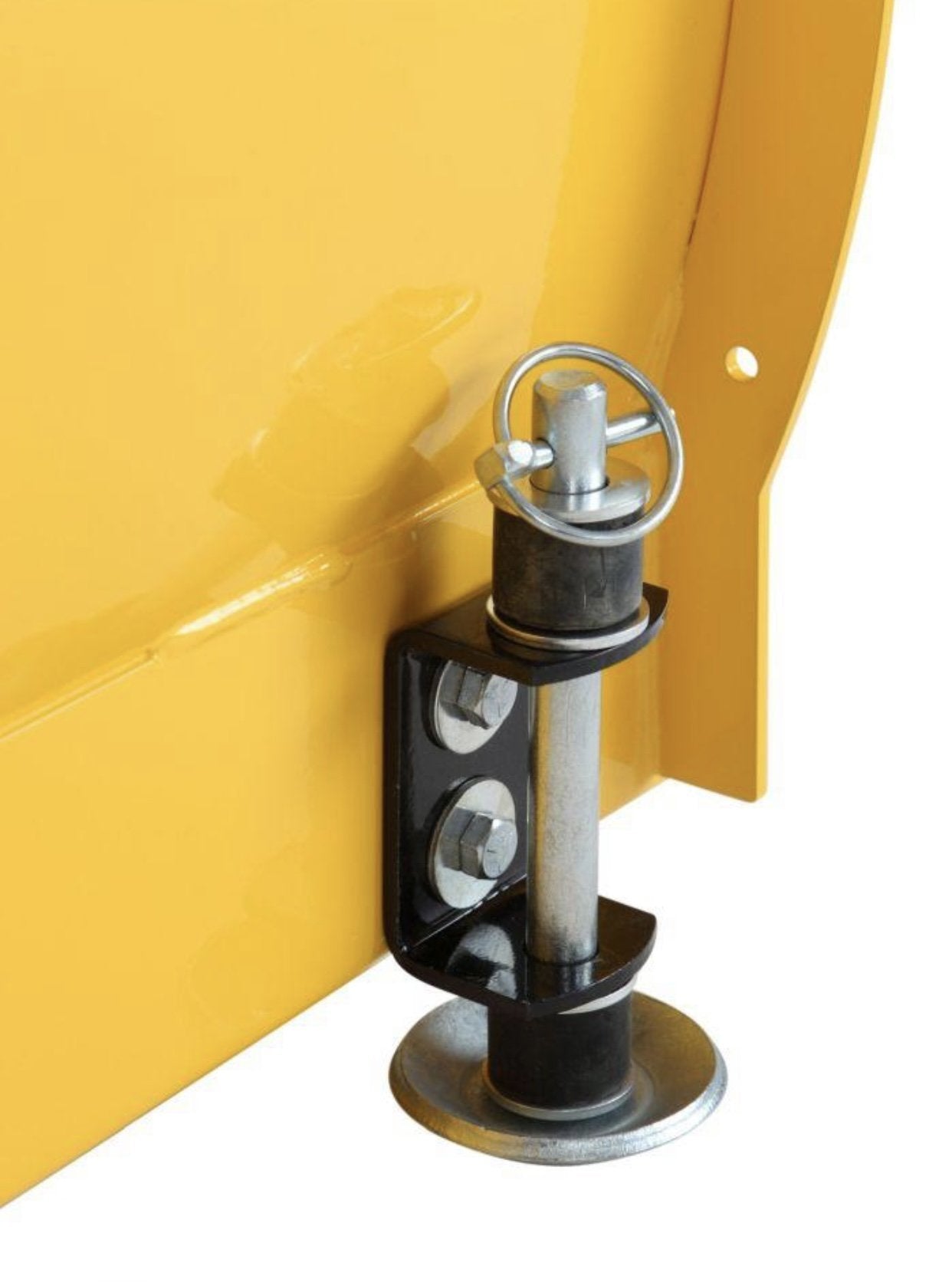

- Height AND angle adjustable steel skid feet
- 3 Year Warranty
- Made in the USA

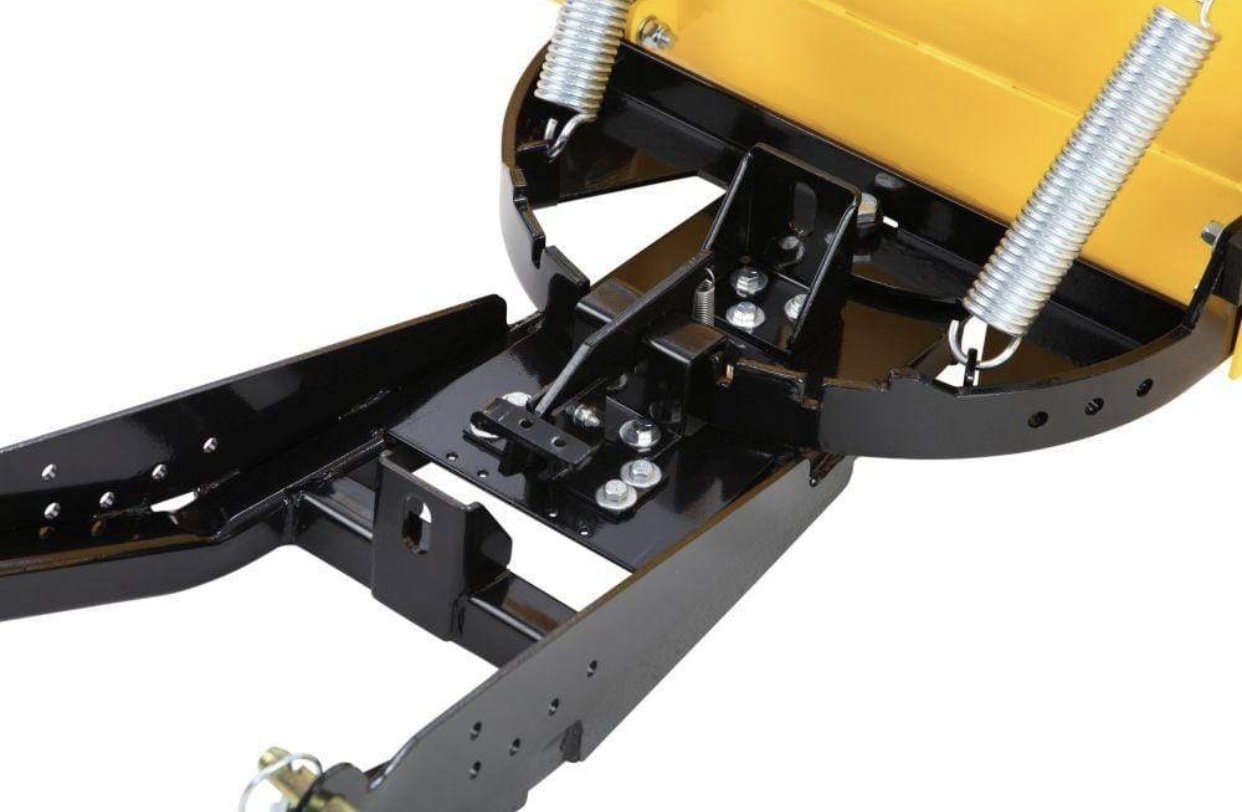

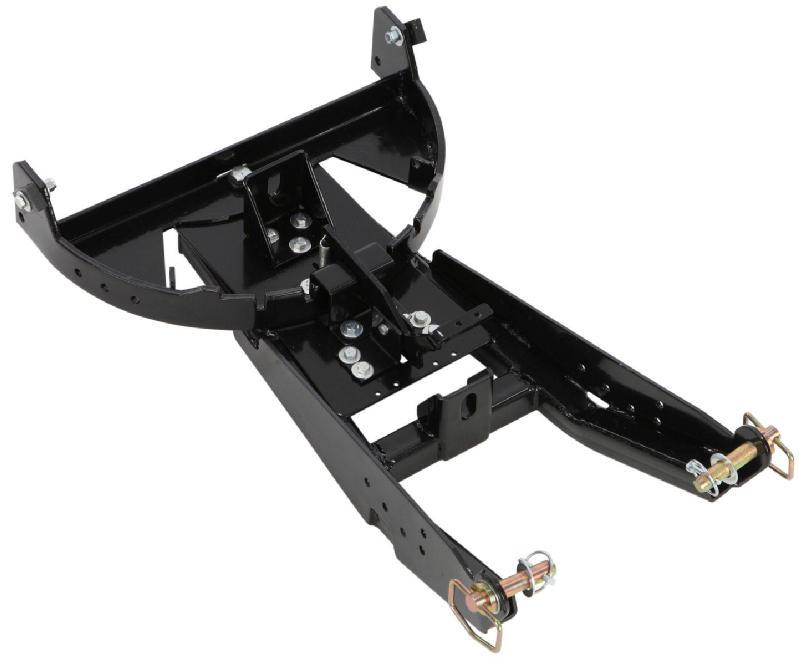

Pushtube Features:
- Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength
- Turn system allows for easy positioning of the blade in 5 different angles - 0, 12.5°, 25°
- Simple detachment system with the pull of a pin
- Structural tube steel cross bar for added lateral rigidity
- Quick release pins included
- 13.5 inches center to center for plow mount tabs
- Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
- Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)
- Extended Push Tubes are designed to be used with SxS/UTVs that have tracks

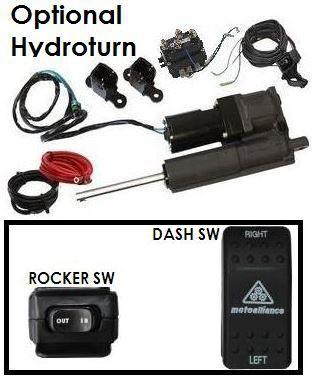

Optional Hydroturn Features:
- PLEASE NOTE: Extended Pushtubes is not compatible with the Hydraulic Lift System
- Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
- Change the blade angle while driving; full radius turn in just 10 seconds
- Heavy duty chrome plated ¾″ cylinder shaft
- No modifications necessary - bolts directly to the Denali UTV Plow Push Tubes
- Wire harness utilizes weatherproof connectors

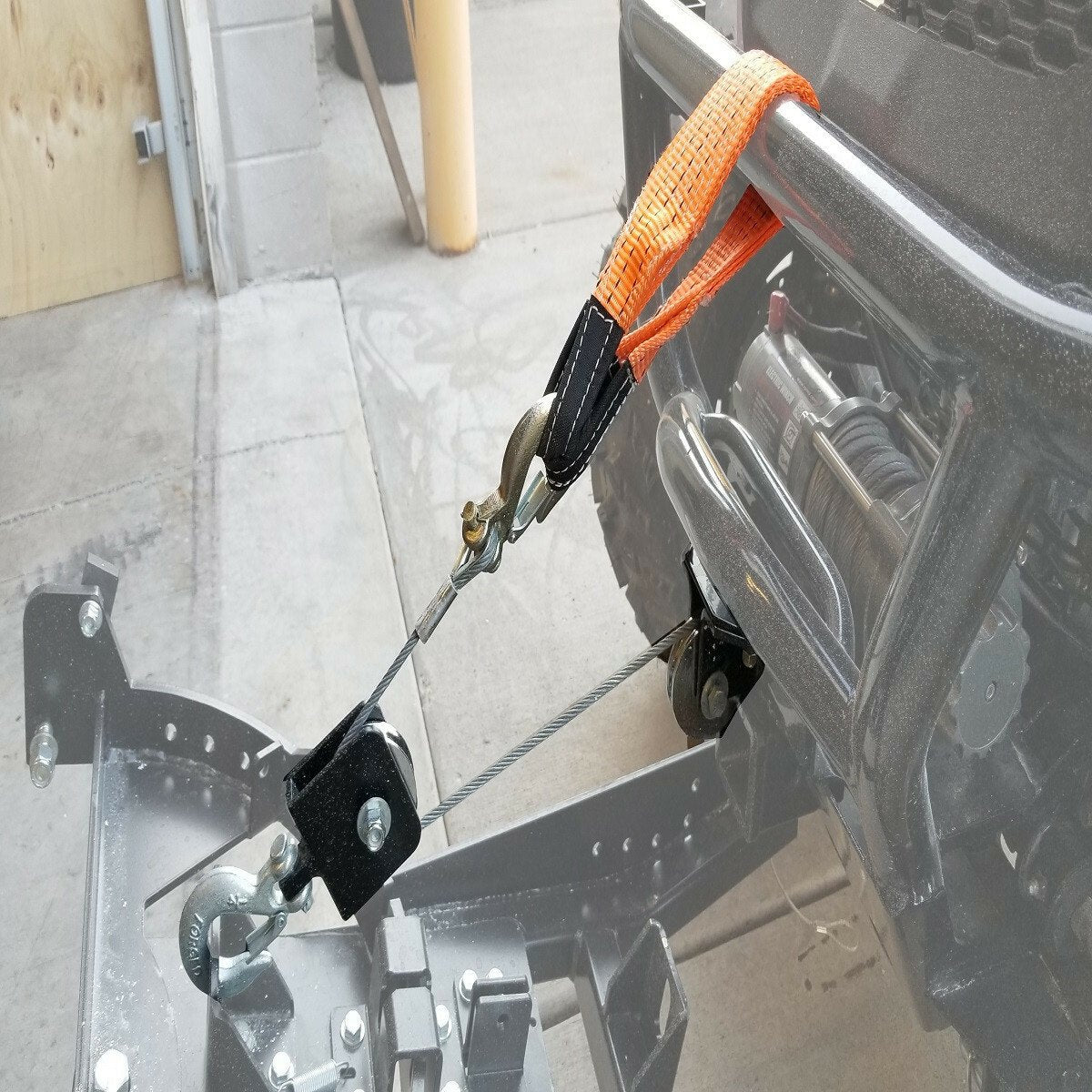

Optional Plow Pulley Fairlead Features:
- Roller
- Replaces the winch fairlead during the plow season
- For use with Steel AND Synthetic cables
- Curved cable groove helps eliminate flattening and breaking of cable
- Bolt Patterns:
- Standard Spool: 3″ x 4.875″
- Wide Spool: 3" x 6.67″
- Sheave
- Includes pulley, 1/4″ clevis hook and nylon strap
- Allows greater precision when raising/lowering plow blade and increases the angle of pull
- Cable
- 12′ length, 1/4″ diameter
- Single braid, dyneema rope with galvanized steel thimble/eyelet
